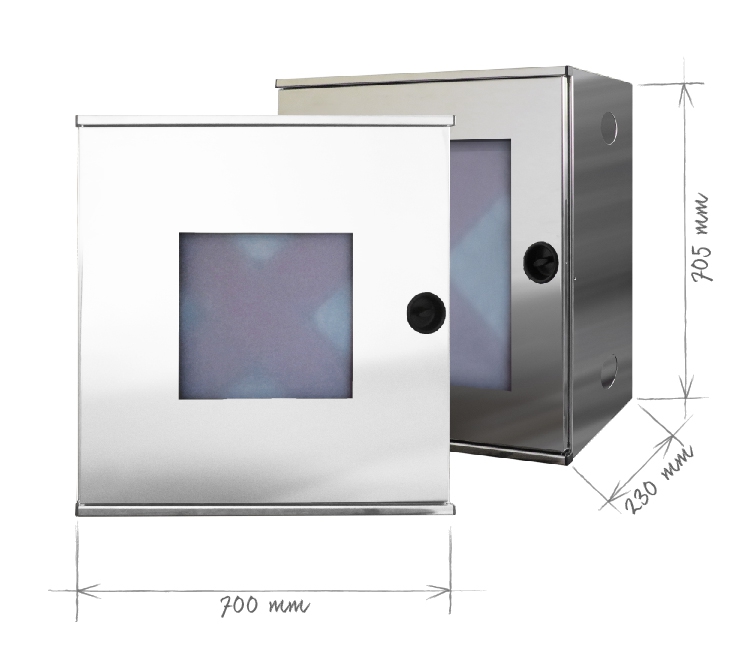

Hydrant System D25

Size: 705 x 700 x 230 mm

Standard version (surface finish): red (RAL 3000)

                                                      white (RAL 9010)

Hydrant systems are manufactured by our company and are intended for fire protection of buildings. It is immediately attainable effective extinguishing equipment with constant supply of water. Our hydrant systems are intended for installation into the wall but also for hanging on the wall.

Certified according to EN 671-1

Composition of the hydrant system:

• Steel cabinet and doors
• Hose reel (drum)
• Dimensionally stable hose Ø 25 mm
• Brass ball valve D25
• Fire nozzle combined D25
• Connecting hose used to connect the system to water main
• Instruction for use

Optional equipment:

• If necessary, possibility of the copy in other RAL colors
• Feasibility in glazed version - glazed hole:
  • 300 x 300 mm
  • 560 x 520 mm
• Feasibility in stainless steel
• Separate hose reel (drum) with mounting directly on the wall

Code: 0046P
